- Audio-Technica’s flagship magnetic core moving coil cartridge
- Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion
- Special line contact stylus ensures faithful reproduction of the music signal, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics
- Neodymium magnet and permendur yoke significantly increase magnetic energy
- Specially designed magnetic circuit provides an output voltage of 0.5 mV (1 kHz, 5 cm/sec)
- PCOCC coils ensure high-fidelity transmission
- Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
- Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance
- Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm

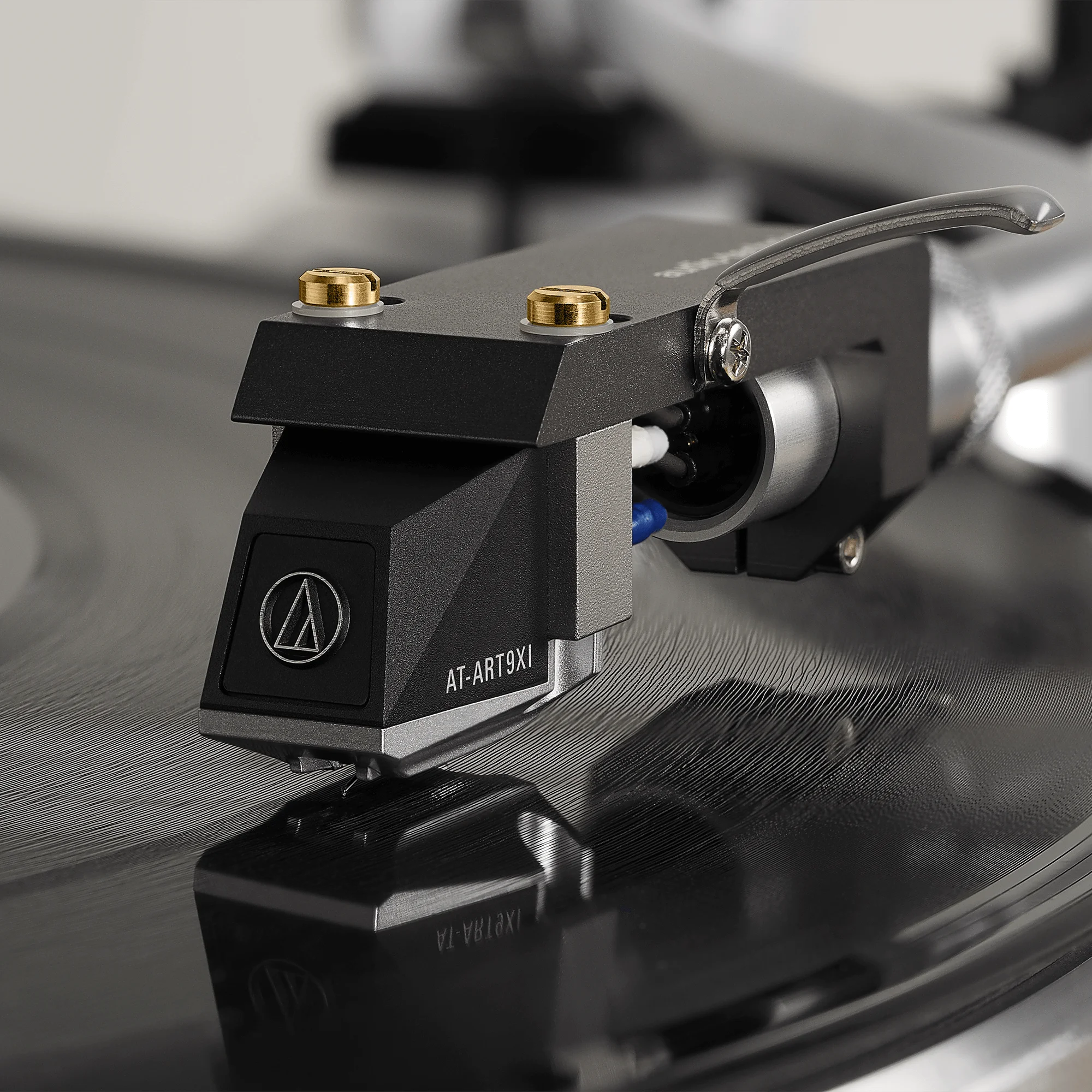

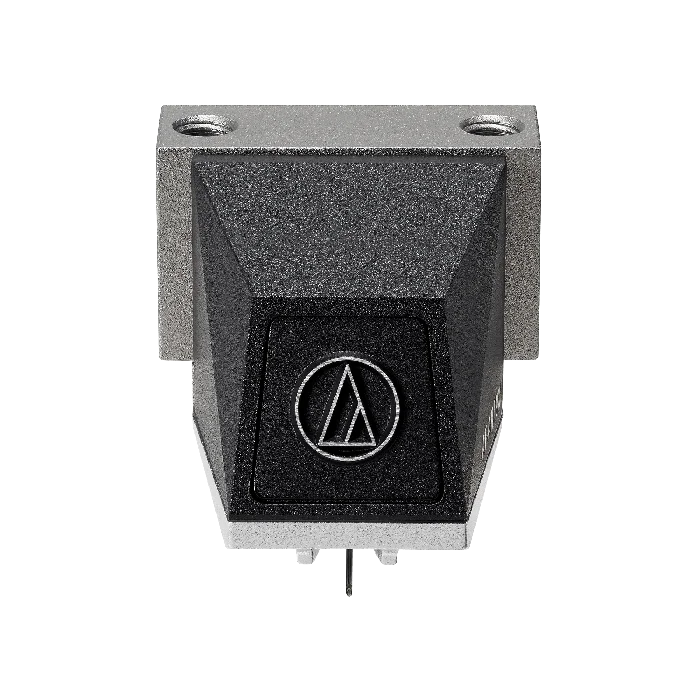

AT-ART9XI
Ursprünglicher Preis war: €180.00€113.98Aktueller Preis ist: €113.98.
Dual Moving Coil Cartridge
Beschreibung
Spezifikationen
| Tonabnehmer & Nadel | |
|---|---|
| Frequenzbereich | 20-50,000 Hz |
| Kanaltrennung | 30 (dB at 1 kHz) |
| Vertikaler Abtastwinkel | 20° |
| Vertical Tracking Force | 1.6-2.0 g (1.8 g standard) |
| Schaftform der Nadel | Nude |
| Empfohlene Lastimpedanz | Min. 100 ohms (when head amplifier connected) |
| Spulenimpedanz | 12 ohms (1 kHz) |
| DC Widerstand | 12 ohms |
| Spuleninduktivität | 25 µH (1 kHz) |
| Ausgangsleistung | 0.5 mV (1 kHz, 5 cm/sec.) |
| Kanalbalance am Ausgang | 0.5 dB (1 kHz) |
| Nadelschliff | Special line contact |
| Nadelträger | 0.28 mm diameter solid boron |
| Statische Nadelnachgiebigkeit | 25 x 10-6 cm/dyne |
| Dynamische Nadelnachgiebigkeit | 15 x 10-6 cm/dyne (100 Hz) |
| Befestigung | Half-inch |
| Gewicht | 8.5 g (0.30 oz) |
| Abmessungen | 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D |
| Beiliegendes Zubehör | Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush |
| Threaded Hole | M2.6 x 2 |
| Notes | Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable. |
